Assembling a Kamado grill, especially in a manufacturing setting, is a multi-step process that requires precision, attention to detail, and a deep understanding of how each part contributes to the grill's overall function and durability. The complexity varies depending on the grill's size, design, and the number of integrated features.

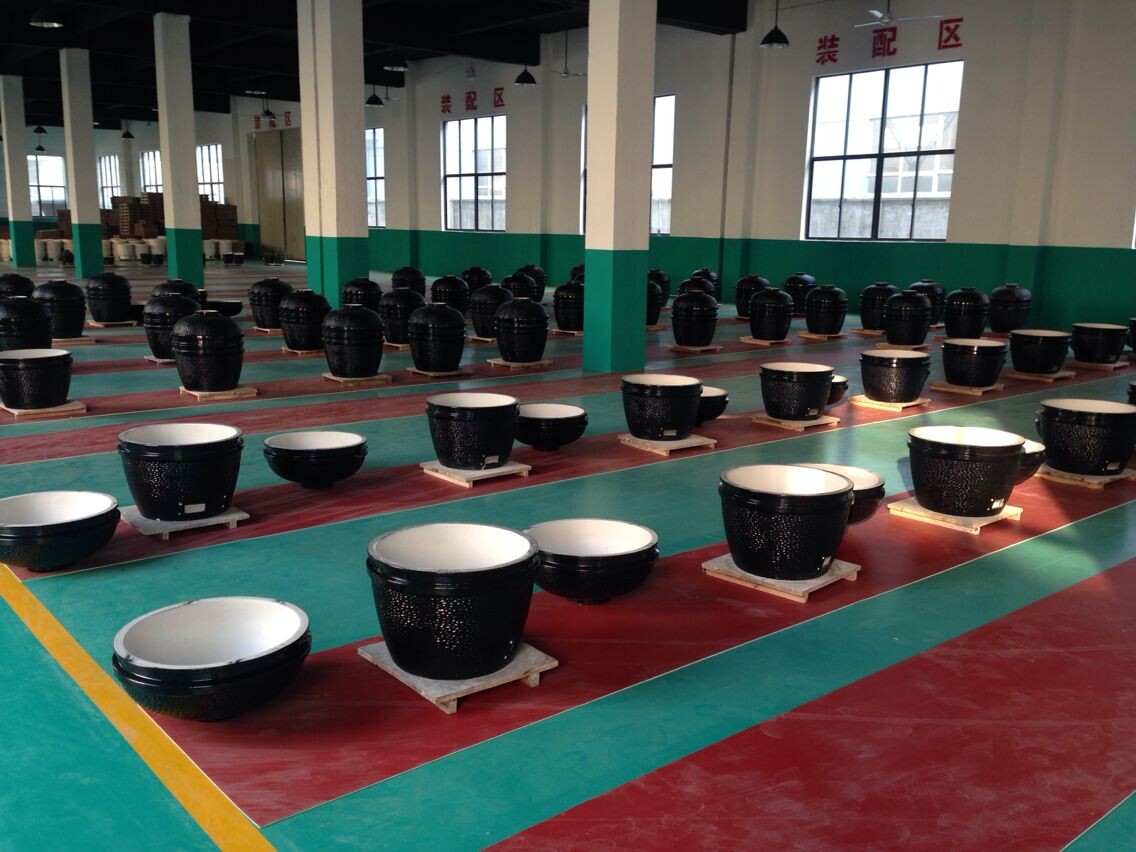

Before assembly begins, all components must be ready and staged. This includes:
● Ceramic Body: The main lid and base, firebox, and fire ring, all of which have undergone bisque and glaze firing, are cleaned, inspected for any last-minute defects, and moved to the assembly line.
● Metal Components: Cooking grates, stands, hinges, vents, ash pans, and hardware (bolts, nuts, washers) are typically brought from their respective manufacturing stations, often pre-assembled into sub-components (e.g., fully assembled stands, hinge mechanisms).
● Plastic/Wood Components: Handles, side shelves, and any other ergonomic or aesthetic elements are prepared.
● Gaskets: High-temperature felt or fiberglass gaskets are cut to size or sourced as pre-formed rings.
● Accessories: Thermometers, heat deflectors, and other standard inclusions are ready.
Assembly lines can range from manual stations where skilled technicians perform all tasks to highly automated lines utilizing robotics for repetitive tasks like fastening.
The gasket is arguably one of the most critical components for a Kamado grill's performance. It creates the airtight seal between the lid and the base, enabling precise airflow control and exceptional heat retention.
● Material: Typically made from high-temperature resistant felt, fiberglass, or sometimes a specialized woven fabric.
● Application:
○ The ceramic surfaces where the gasket will sit are meticulously cleaned to ensure optimal adhesion.
○ For self-adhesive gaskets, a protective backing is peeled away, and the gasket is carefully pressed onto the ceramic rim of both the lid and the base. Precision is key to ensure a continuous, unbroken seal.
○ For non-adhesive gaskets, a high-temperature adhesive is applied to the ceramic surface before the gasket is laid down.
○ Technicians often use rollers or apply consistent pressure to ensure firm contact and prevent air gaps.
● Importance: A poorly installed gasket can lead to air leaks, making temperature control difficult, wasting charcoal, and potentially shortening the grill's lifespan due to inefficient burns.
The hinge mechanism allows for smooth opening and closing of the heavy ceramic lid. It typically involves metal bands that encircle the lid and base, connected by a robust hinge assembly.
● Bands: Stainless steel or powder-coated steel bands are carefully fitted around the top of the base and the bottom of the lid. These bands not only hold the hinge but also provide structural reinforcement to the ceramic.
● Hinge Attachment: The hinge assembly, which often includes springs (for assisted lifting) and pivot points, is bolted securely to the metal bands.
● Alignment: This step requires precise alignment. If the bands are not perfectly concentric or the hinge is misaligned, the lid may not close properly, leading to leaks, or it may bind and be difficult to open. Specialized jigs are often used to hold the lid and base in perfect alignment during hinge installation.
● Spring Tensioning: If present, hinge springs are carefully tensioned to provide the optimal lift assist, ensuring the lid feels light to open and closes securely without slamming.
The top and bottom vents (dampers) are essential for airflow regulation, which directly controls the grill's temperature. The thermometer provides crucial temperature readings.
● Bottom Vent: The metal bottom vent assembly is typically bolted or screwed onto the lower ceramic body. A gasket is often used here too to ensure an airtight seal.
● Top Vent: The cast iron or stainless steel top vent is placed onto the lid. Its design allows it to sit snugly and be easily adjusted for precise airflow.
● Thermometer: The thermometer probe is inserted into a pre-drilled hole in the lid. A grommet or heat-resistant seal is used to secure it and prevent smoke or heat leakage. Calibration checks might be performed at this stage.
The internal ceramic and metal components are placed inside the main body.
● Firebox and Fire Ring: The ceramic firebox (where charcoal rests) and fire ring (which sits on top of the firebox and supports the cooking grates) are carefully placed inside the base. These are typically "dry fit" without fasteners, relying on their weight and shape to stay in place.
● Cooking Grates: The primary and sometimes secondary cooking grates are placed onto their designated supports (fire ring or grate-level extenders).
While sometimes assembled separately and later mated with the ceramic body, the stand or cart provides the necessary mobile or stationary foundation for the heavy Kamado.
● Frame Assembly: Welded or bolted sub-assemblies of the metal stand (legs, cross-members) are joined together.
● Wheel Installation: Wheels, often including locking casters, are bolted to the stand's legs.
● Side Shelf/Handle Attachment: Plastic or wood side shelves are attached to the stand or directly to the grill body using pre-drilled holes and fasteners. Handles (for both the lid and side shelves) are also secured.
● Mounting the Ceramic Body: The heavy ceramic base of the grill is carefully lifted and placed onto the support ring or cradle of the assembled stand. This often requires multiple workers or specialized lifting equipment due to the weight.
● Hardware Tightening: All bolts, nuts, and screws are double-checked for proper tightness, ensuring no loose connections.
● Aesthetic Inspection: A final visual inspection checks for any scratches, blemishes, or misalignments.
● Accessory Inclusion: Any included accessories like ash tools, grill covers, or manuals are packaged with the grill.
Assembly is only half the battle. Once a Kamado grill is complete, it must undergo a series of rigorous tests to ensure it performs as expected, meets safety standards, and will last for years of reliable use. Testing can occur at various stages, from component-level checks to full system validation.
● Ceramic Body Inspection: Prior to assembly, ceramic parts are often subjected to acoustic testing (tapping for a clear ring, indicating no cracks) and dimensional checks.
● Metal Part Verification: Metal components undergo checks for weld integrity, coating adhesion (e.g., cross-hatch adhesion tests for powder coat), and dimensional accuracy.
● Hinge Mechanism Testing: Individual hinge assemblies might be tested for smooth operation and spring tension before being attached to the grill.
Once fully assembled, the Kamado grill is put through a series of functional checks:
● Lid Operation:
○ Smooth Opening/Closing: The lid should open smoothly without binding or excessive force.
○ Lid Hold: If the grill has a "lid hold" feature, it's checked to ensure the lid stays open at various angles without slamming shut.
○ Slam Test: Sometimes, a controlled "slam test" is performed to verify the hinge's resilience and the structural integrity of the ceramic under impact.
● Gasket Seal Test:
○ "Paper Test": A common method where a piece of paper is placed between the lid and the base, and the lid is closed. The paper should be difficult to pull out, indicating a tight seal. This is repeated at multiple points around the circumference.
○ Light Test: In a dark room, a light source is placed inside the grill. No light should escape around the lid seal when closed, indicating an airtight closure.
○ Smoke Test (Simulated): For some manufacturers, a controlled smoke generator might be used inside the grill to visually confirm no smoke leaks from the seals.
● Vent Operation:
○ Both top and bottom vents are opened and closed multiple times to ensure smooth operation, secure positioning at desired settings, and no sticking or binding.
○ The airtightness of the closed vents is also checked.
● Thermometer Accuracy: The built-in thermometer is checked against a calibrated standard (e.g., using a hot water bath) to ensure it provides accurate temperature readings.
● Stand Stability and Mobility:
○ The assembled stand is checked for wobbling or instability.
○ Wheels are tested for smooth rolling, and locking casters are engaged and disengaged to confirm they hold the grill securely in place.
○ Side shelves are extended, tested for weight-bearing capacity (sometimes with test weights), and checked for stability.
For higher-end Kamados or in larger production runs, a sample of grills might undergo more intensive performance testing:
● Burn-In Test: A grill might be fired up and run at high temperatures for a set period to check for any issues under actual operating conditions, such as:
○ Smoke leaks from non-gasket areas.
○ Ceramic cracking under thermal stress (rare if prior firing is correct, but still a check).
○ Hinge or vent deformation under heat.
○ Glaze integrity (no bubbling or cracking under heat).
● Heat Retention Test: The grill is brought to a specific temperature, and then the fuel is removed or dampened to see how long it takes for the internal temperature to drop to a certain point. This verifies the insulation properties of the ceramic and the effectiveness of the seals.
● Durability and Lifecycle Testing (Laboratory): While not performed on every unit, design validation often includes accelerated lifecycle testing where hinges are opened and closed tens of thousands of times, or components are exposed to extreme environmental conditions (humidity, UV, cold) to simulate years of use.
● Temperature of External Surfaces: Ensuring external handles and surfaces remain within safe temperature limits during operation.
● Stability Testing: Verifying the grill doesn't tip over easily when opened or pushed.
● Flammability of Materials: Ensuring all materials meet fire safety standards.
● Certifications: Ensuring the grill complies with relevant safety standards and certifications (e.g., CSA, CE) in the markets where it will be sold.
The assembly and testing phases are the final crucial chapters in the manufacturing story of a Kamado grill. It's during assembly that the precisely crafted ceramic, metal, and plastic components unite to form a complete, ergonomic, and functional unit. The subsequent rigorous testing, from simple functional checks to demanding performance simulations, ensures that each Kamado grill not only looks aesthetically pleasing but also performs flawlessly and safely for years to come. This final dedication to quality control is what distinguishes a premium Kamado grill and builds the trust that enthusiasts place in its ability to deliver an unparalleled grilling experience.
