From Bisque to Brilliance: The Stage is Set

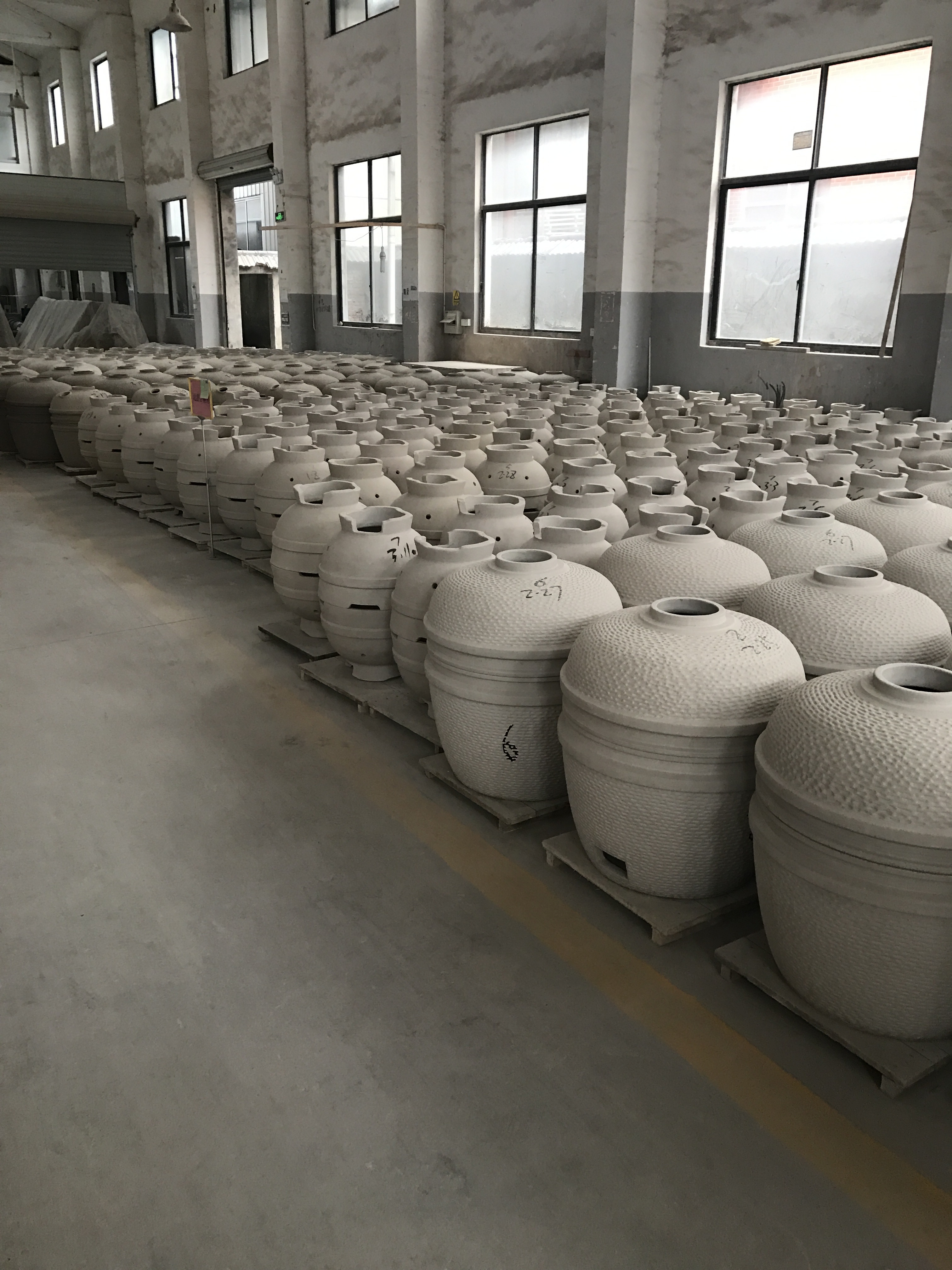

Before the glaze firing begins, the Kamado grill's major ceramic components—the lid, base, and firebox—have already undergone bisque firing and have been carefully glazed. As previously discussed, bisque firing renders the clay porous and strong enough for handling and glaze application. Following the bisque, the components are meticulously cleaned and coated with a liquid glaze, often through sophisticated spray glazing techniques to ensure uniform coverage. Crucially, this applied wet glaze must then be thoroughly dried to prevent defects like bubbling or crawling during the subsequent firing. Only when the glaze is completely dry and chalky to the touch are the pieces ready for their ultimate thermal test.

The Purpose and Importance of Glaze Firing

Glaze firing is far more than just adding a pretty finish. It's a transformative process critical to the Kamado grill's functionality and durability:

1. Vitrification of the Glaze: The primary purpose is to melt the powdered mineral components of the glaze into a continuous, non-porous, glass-like layer. This glassy coating, while aesthetically pleasing, provides a crucial barrier.

2. Airtightness and Moisture Resistance: The vitrified glaze makes the Kamado grill's exterior impervious to moisture. This is vital for outdoor use, preventing water absorption that could lead to cracking from freeze-thaw cycles, mold growth, or weakening of the ceramic body over time.

3. Enhanced Durability and Cleanability: The hard, smooth, glassy surface of the vitrified glaze makes the grill extremely resistant to scratches, abrasions, and chemical attack from cleaning agents or food acids. It also makes the surface incredibly easy to clean, resisting stains and charring.

4. Aesthetics and Color Development: High temperatures are essential for the glazes to develop their intended colors, textures, and sheen (from matte to high gloss). The fluxes in the glaze melt and allow colorants (metal oxides) to disperse and react, creating the vibrant and rich hues characteristic of many Kamado grills.

5. Further Vitrification of the Ceramic Body: While bisque firing provides initial strength, glaze firing often occurs at even higher temperatures, causing the underlying ceramic body to undergo further vitrification. This means the clay particles become more densely packed, reducing porosity and increasing the overall strength, density, and thermal shock resistance of the Kamado structure. This is critical for parts like the firebox and the outer shell that experience extreme temperature fluctuations.

6. Fusion (Body-Glaze Interface): The glaze doesn't just sit on the surface; it chemically bonds with the bisqueware body. At high temperatures, a "transition zone" or interface forms where the glaze partially dissolves the surface of the ceramic, creating a strong, permanent bond. This prevents the glaze from peeling or flaking off (a defect known as shivering).

The Glaze Firing Process in an Industrial Kiln: A Thermal Masterpiece

The glaze firing of Kamado grill components takes place in large, precisely controlled industrial kilns, often operating at significantly higher temperatures than bisque kilns. The process is typically automated and follows a meticulously programmed firing schedule.

1. Kiln Loading:

○ The carefully dried, glazed Kamado components are meticulously loaded into the kiln. Due to their size and weight, specialized kiln furniture (shelves, posts, props) made from highly refractory materials are used to support them without deforming at extreme temperatures.

○ Sufficient space is left between pieces and between pieces and kiln walls to ensure uniform heat circulation and prevent warping or sticking. Any glaze on the "foot" or contact points of the pieces must be meticulously removed to prevent them from fusing to the kiln shelves.

2. The Firing Schedule: A Programmed Ascent and Descent

○ Ramp-Up (Heating Cycle): The kiln's temperature is increased according to a precise schedule. This is a multi-stage process:

■ Initial Low-Temperature Hold (Pre-sintering): The kiln might start with a slow ramp up to around 300°C (572°F) or even a hold. This ensures any final residual moisture from the glaze or trapped air is slowly driven off, preventing steam explosions or glaze blistering.

■ Medium-Temperature Ascent (Organic Burnout & Glaze Sintering): The temperature continues to rise at a controlled rate. During this phase, any remaining organic binders in the glaze begin to burn out. The glaze particles start to sinter and consolidate, forming a coherent layer on the ceramic surface.

■ High-Temperature Ramp (Melting & Maturation): As the kiln approaches its target peak temperature, the rate of increase might slow down again. This is the crucial stage where the glaze minerals begin to melt, flow, and smooth out. The ceramic body also undergoes its final stages of vitrification. The exact temperature and duration depend on the specific clay body and glaze formulation.

○ Soak (Hold at Peak Temperature): Once the kiln reaches the target maturation temperature for the glaze (e.g., Cone 5-6 for mid-range stoneware, approximately 2165°F-2232°F or 1185°C-1222°C; or Cone 8-10 for high-fire stoneware, approximately 2300°F-2400°F or 1260°C-1315°C, depending on the specific Kamado manufacturer's materials), it is typically held at that temperature for a programmed "soak" period.

■ This soak is critical for allowing the glaze to fully melt, smooth out, and become free of pinholes or bubbles (gassing off).

■ It ensures that the entire mass of the Kamado component, especially its thick sections, reaches the desired temperature uniformly, preventing under-fired or over-fired areas.

■ It facilitates the optimal chemical interaction and bonding between the glaze and the ceramic body.

○ Cool-Down (Controlled Descent): After the soak, the kiln begins its cool-down cycle. This is arguably as critical as the ramp-up for the final quality of the Kamado grill.

■ Slow Cooling Through Critical Zones: The cooling is often controlled and gradual, especially through specific temperature ranges where molecular changes in the ceramic body (like quartz inversion around 573°C / 1063°F) and glaze crystallization can occur. Rapid cooling through these zones can induce immense thermal stress, leading to crazing (fine cracks in the glaze surface due to thermal expansion mismatch between glaze and body), shivering (glaze peeling off, the opposite of crazing), or dunting (larger cracks in the body).

■

■ Glaze Surface Development: For certain glaze types (e.g., matte or crystalline glazes), a specific slow cooling rate is vital for the development of microcrystals that give the glaze its unique texture or appearance. Rapid cooling would result in a glossy, undeveloped surface.

■

■ Preventing Bloating/Blistering: Controlled cooling allows any trapped gases in the body or glaze to escape without causing large bubbles or bloating as the materials solidify.

■ The entire glaze firing cycle, including ramping up, soaking, and cooling, can take anywhere from 12 to 24 hours or even longer for very large, thick-walled Kamado components in industrial kilns.

Glaze Firing Atmosphere: Oxidation vs. Reduction

While electric kilns typically operate in an oxidation atmosphere (plenty of oxygen), some larger industrial kilns used for high-fire ceramics, particularly gas-fired ones, can operate in a reduction atmosphere (limited oxygen). The choice of atmosphere significantly impacts the final glaze color and characteristics:

● Oxidation: Produces brighter, cleaner colors from metal oxides. Most commercial glazes are designed for oxidation firing.

● Reduction: Creates more muted, earthy, and often complex colors, as metal oxides lose oxygen and change their chemical state. For example, copper oxide, which is green in oxidation, can become a vibrant red in reduction. Some high-end Kamado grills might use reduction firing to achieve unique, deep glaze finishes.

●

Quality Control and Post-Firing Inspection

Upon completion of the glaze firing cycle and complete cooling of the kiln, the finished Kamado components are carefully unloaded. Each piece undergoes rigorous quality control inspections:

● Visual Inspection: Checking for glaze defects such as crazing, shivering, crawling, pinholes, blisters, or uneven application.

● Dimensional Checks: Ensuring the components meet precise specifications for assembly.

● Structural Integrity: Tapping the ceramic (a traditional method) to check for a clear, resonant sound, indicating an absence of hidden cracks.

● Thermal Shock Resistance Tests: In some cases, samples may be subjected to controlled thermal shock tests to verify their ability to withstand rapid temperature changes during use.

The End Result: A Kamado Ready for Generations of Grilling

The glaze firing is the crowning achievement in the ceramic manufacturing of a Kamado grill. It's where the carefully formulated glaze transforms from a dull, powdery coating into the vibrant, durable, and functional surface that defines the grill's exterior. More than just aesthetics, this process permanently locks in the ceramic's thermal properties, creating an incredibly strong, dense, and non-porous structure capable of enduring extreme heat and weather conditions for decades. It's the final fiery embrace that hardens the Kamado's heart, sealing its promise of exceptional cooking performance and lasting beauty.
