The Journey of Clay to Ceramic: Setting the Stage

Before a ceramic Kamado body enters the kiln for bisque firing, it undergoes extensive preparation. High-quality raw materials – a precise blend of various clays (like kaolin and ball clay), feldspar, quartz, and sometimes mullite or other refractory materials – are carefully selected and processed. This involves grinding, sieving, and mixing with water to create a homogeneous, plastic clay body. After being formed, typically through advanced press molding techniques, the large ceramic pieces (lid, base, firebox) must undergo a slow and thorough drying process. This is crucial to remove all physical water content, preventing catastrophic cracking or explosions in the kiln due to rapid steam expansion. Only when the clay pieces are "bone dry" are they ready for the bisque firing.

What is Bisque Firing? The First Baptism of Fire

Bisque firing (sometimes called "biscuit firing") is the initial, lower-temperature firing of unfired, bone-dry clay (known as "greenware"). Its primary purpose is to permanently transform the clay from its fragile, water-soluble state into a stable, porous, and more robust ceramic material called "bisqueware." This transformation is essential for several reasons, which will be detailed below.

The Purpose and Importance of Bisque Firing:

1. Increased Durability and Handleability: Bone-dry greenware is incredibly brittle and easily damaged. Bisque firing imparts sufficient strength to the ceramic pieces, making them durable enough to be handled, moved, transported, and, most importantly, safely glazed without disintegrating or deforming. This is crucial for the large and heavy components of a Kamado grill.

2. Achieving Porosity for Glaze Absorption: One of the most critical functions of bisque firing is to create a specific level of porosity in the ceramic body. While the clay hardens, it does not fully vitrify (become glass-like and non-porous) during bisque firing. This controlled porosity allows the subsequent liquid glaze slurry to be evenly absorbed onto the surface of the bisqueware, ensuring a consistent and uniform glaze layer. If the body were fully vitrified at this stage, the glaze would not adhere properly.

3. Eliminating Organic Materials and Chemically Bound Water: As the kiln temperature slowly rises during bisque firing, several crucial chemical and physical changes occur:

○ Evaporation of Free Water: Even "bone-dry" clay contains trace amounts of moisture. At temperatures up to around 212°F (100°C), any remaining physical water evaporates. Slow heating ("candling") is critical here to prevent rapid steam expansion, which could cause the piece to explode.

○ Burning Out of Organic Materials: Most clay bodies contain some organic matter (e.g., plant debris, carbon compounds). Between approximately 570°F (300°C) and 1470°F (800°C), these organic materials combust and burn out of the clay body. Proper kiln ventilation is essential to allow these gases to escape safely. If these organics were not removed at this stage, they could cause bubbling, pinholes, or other defects in the final glaze during the higher-temperature glaze firing.

○ Dehydration/Chemical Water Removal: Beyond 660°F (350°C) and up to around 1110°F (600°C), the chemically bound water within the clay's molecular structure is permanently driven off. This is a crucial irreversible chemical change that transforms the clay mineral into a new, more stable phase.

4. Initial Sintering and Particle Bonding: As temperatures continue to rise (typically above 1650°F / 900°C), the clay particles begin to "sinter." This is a process where the edges of the individual clay particles start to bond together without fully melting, forming a stronger, more cohesive structure. This gives the bisqueware its initial, permanent strength and stability.

5. Preventing Glaze Defects: By removing volatile compounds and achieving optimal porosity, bisque firing prevents many common glaze defects such as bubbling, pinholes, crawling, and uneven glaze application, which could otherwise occur if raw clay were directly glazed and fired.

The Bisque Firing Process in a Kiln: Controlled and Gradual

For Kamado grills, which involve large, thick ceramic pieces, the bisque firing process in a kiln is particularly critical and requires meticulous control.

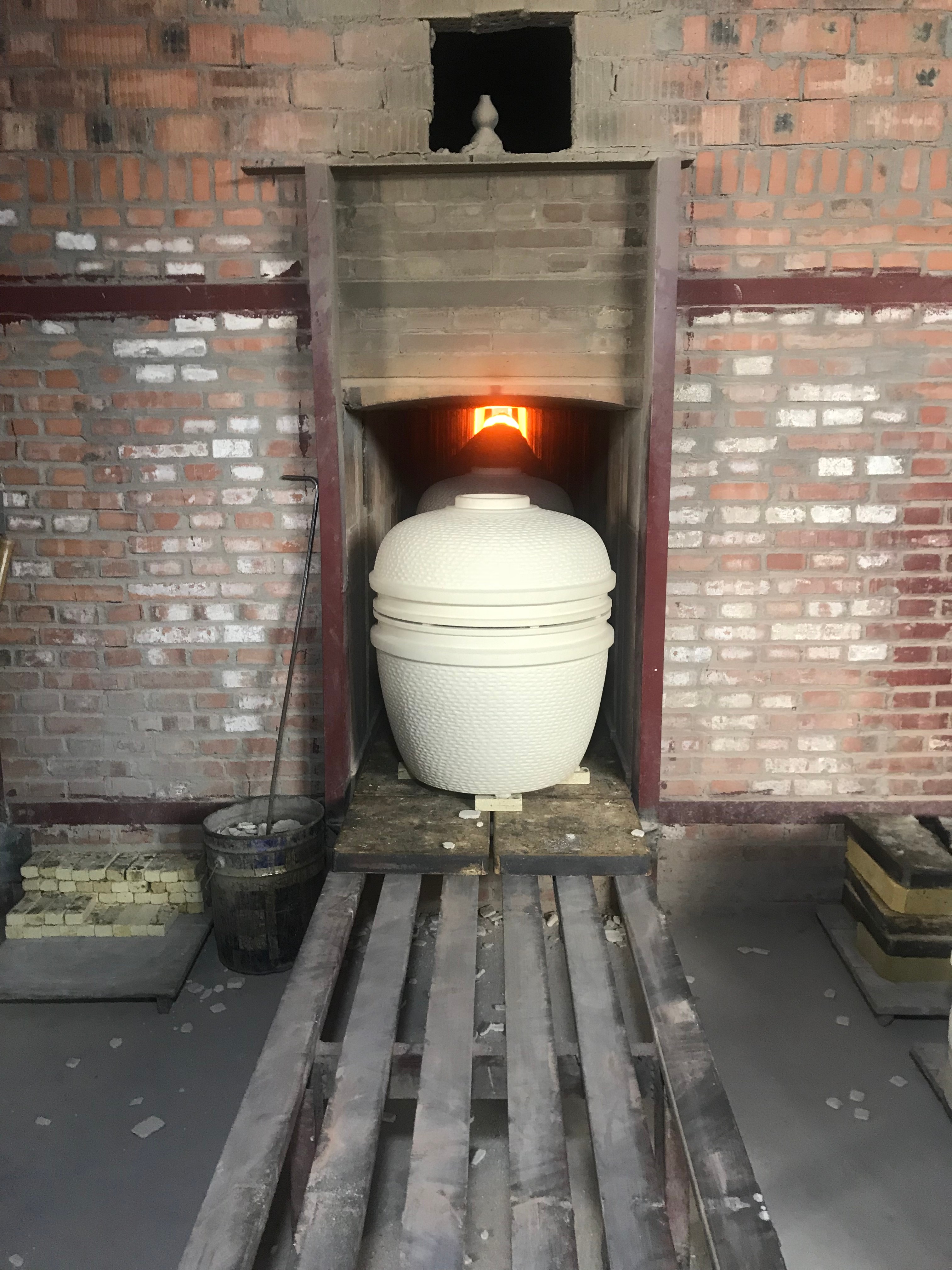

1. Kiln Loading: The bone-dry ceramic components are carefully loaded into a large, industrial-grade kiln. Sufficient space is left between pieces to allow for proper heat circulation and uniform firing. Shelves are typically coated with kiln wash to prevent pieces from sticking if any drips occur.

2. Slow and Gradual Ramp-Up (Candling Phase): This is perhaps the most crucial part of the bisque firing for large ceramic pieces. The kiln temperature is increased very slowly, especially in the initial stages (up to around 200°F / 93°C, often referred to as "candling"). This low-temperature hold or very slow ramp-up ensures that any last traces of physical moisture are completely evaporated without causing thermal shock or steam explosions. For thick Kamado components, this phase might extend for several hours.

3. Continued Heating and Burnout: After the initial drying phase, the temperature ramp-up continues, though still at a controlled pace. This phase focuses on the burnout of organic materials and the removal of chemically bound water. Adequate ventilation is maintained to allow these gases to escape the kiln chamber.

4. Peak Temperature (Soak): Once the kiln approaches the target bisque temperature, it may hold at that temperature for a certain period (a "soak" or "hold"). This ensures that all parts of the ceramic piece, especially the thick sections, reach the desired temperature uniformly, allowing all necessary chemical and physical changes to complete.

○ Bisque Firing Temperature Range: For typical ceramic clays used in Kamado grills (which are often stoneware or high-temperature earthenware compositions), bisque firing temperatures usually fall within Cone 08 to Cone 04 (approximately 1650°F to 1945°F or 900°C to 1060°C). The specific temperature chosen depends on the clay body's properties and the desired porosity for subsequent glazing. Firing too high in the bisque can reduce porosity too much, making glazing difficult, while firing too low might leave the piece too fragile or with residual organics.

5. Slow Cooling: After reaching the peak temperature, the kiln is typically shut off and allowed to cool down naturally. Forcing a rapid cool-down can induce thermal shock, leading to cracking or dunting (a specific type of thermal stress crack) in the bisqueware, especially in large, thick pieces like those of a Kamado. The cooling process can take many hours, ensuring the ceramic cools evenly and stress-free.

A Foundation for Excellence

The outcome of a successful bisque firing is a hardened, durable, and porous ceramic body – the bisqueware. For a Kamado grill, these bisqued components are now significantly stronger than the greenware, ready to be handled, moved, and precisely coated with a high-temperature ceramic glaze. The controlled porosity of the bisqueware ensures that the glaze adheres evenly, setting the stage for the final, even higher-temperature glaze firing that will fully vitrify the surface, create the iconic finish, and lock in the superb thermal properties for which Kamado grills are renowned. Without this critical initial bisque firing, the production of a high-quality, durable Kamado grill would simply not be possible.
