Understanding the Kamado Grill: Structure and Key Materials

A Kamado grill is a meticulously engineered cooking system, comprising several interconnected parts that work in unison to deliver its signature cooking experience:

● Ceramic Body: This constitutes the very core of the Kamado, encompassing both the distinctive dome-shaped lid and the robust base. It is meticulously crafted from a precise blend of high-quality clays, feldspar, quartz, and other specialized mineral compounds. These raw materials undergo an intense high-temperature firing process. The inherent density and unique porous structure of this ceramic material are fundamental to the grill's exceptional insulation and superior heat storage capabilities.

● Metal Components: Essential for both functionality and durability, these parts include the sturdy stand, precision-engineered hinges, adjustable top and bottom vents, an integrated thermometer, durable cooking grates, and a convenient ash pan. These components are typically fashioned from resilient materials such as stainless steel (chosen for its corrosion resistance), cast iron (valued for its weight, heat retention, and robustness), or aluminum (prized for its lighter weight and effective thermal conductivity).

● Gasket: Positioned strategically between the lid and the main body, the gasket is fabricated from a high-temperature resistant fibrous material. Its critical function is to create an airtight seal, which is absolutely vital for precise airflow control and, consequently, accurate temperature management within the grill's cooking chamber.

● Firebox/Fire Ring: Located inside the main ceramic body, this component serves as the designated container for the charcoal fuel. It is also commonly constructed from a durable refractory ceramic material, specifically designed to endure the intense heat generated during grilling.

The Art of Ceramic Body Forming: Molding and Specialized Ceramic "Roll Forming" (Jiggering/Turning)

The creation of a Kamado grill's ceramic body, while sharing some foundational principles with traditional pottery, is significantly more intricate. This complexity arises from the grill's substantial size, the required thickness of its walls, and the stringent demands for both heat resistance and structural integrity.

1. Raw Material Preparation:

○ The process commences with the scrupulous selection of premium-grade mineral raw materials, encompassing various types of clay, feldspar, quartz, and frequently, mullite. The precise proportioning of these ingredients is paramount, as it directly influences the ceramic's ultimate firing temperature, its shrinkage rate during drying and firing, its resilience to thermal shock, and ultimately, its final mechanical strength and insulating performance.

○ These raw materials then undergo rigorous processing, which includes fine grinding, careful sieving to ensure uniform particle size, and thorough mixing with water to yield a consistent slurry or a plastic, workable clay body. The meticulous removal of impurities and any entrapped air bubbles at this initial stage is absolutely indispensable for producing high-quality ceramics free from structural defects.

2. Forming:

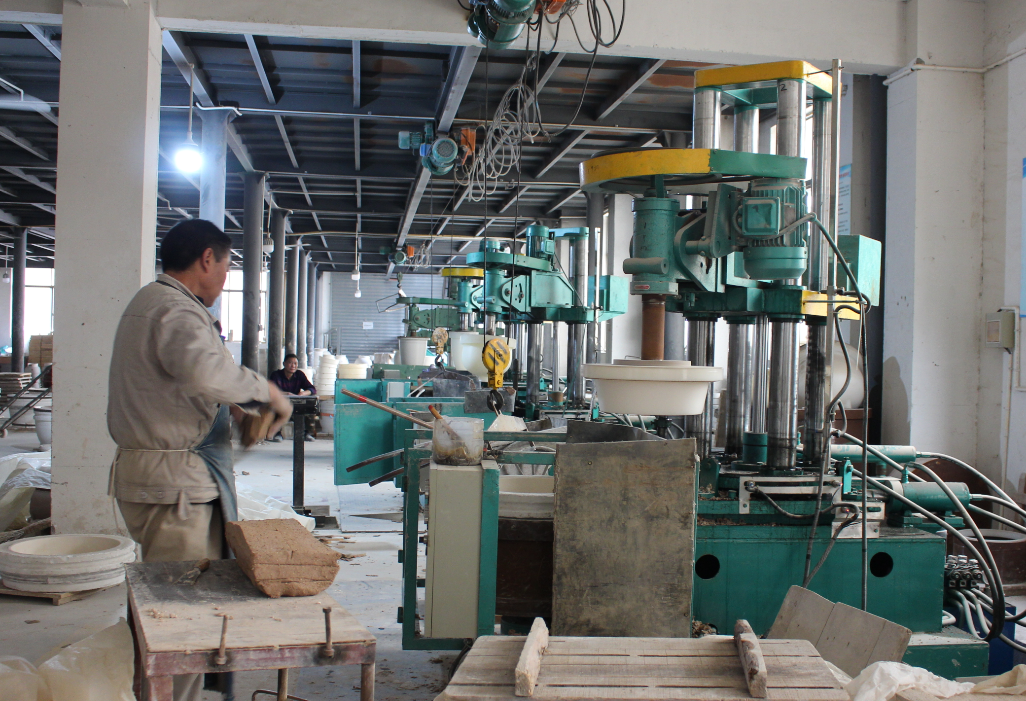

○ Press Molding: This is the most prevalent and effective method for shaping the large, thick ceramic components that form the core of a Kamado grill. The prepared clay body, typically in a plastic or semi-plastic state, is precisely placed into meticulously crafted plaster molds (or occasionally, durable metal molds). Mechanical pressure or vacuum pressure is then applied to compact the clay, compelling it to conform precisely to the intricate contours of the mold. Plaster molds are particularly advantageous due to their inherent porosity, which efficiently absorbs moisture from the clay, facilitating rapid and clean demolding. It's common practice for the lid and base of Kamado grills to be press-molded as separate components, which may then undergo further refinement and assembly after initial drying or bisque firing.

○ Ceramic "Roll Forming" (Jiggering/Turning): While the nomenclature includes "roll forming," it is crucial to recognize that this process is fundamentally distinct from its metalworking counterpart. In the realm of ceramic manufacturing, jiggering and turning refer to specialized techniques that harness a rotating mold in conjunction with a stationary or precisely controlled movable shaping tool to sculpt a plastic clay body.

■ Jiggering (External Rolling/Extrusion): This method is generally better suited for producing relatively flat or shallow ceramic items, such as plates or shallow bowls. A pre-formed slab of clay (often a disc) is carefully positioned on a rotating plaster mold. A stationary or precisely controlled movable metal or plastic roll head (sometimes referred to as a profile tool or "jigger arm") is then employed to apply pressure and mechanically shape the clay from the outside, pressing it firmly against the mold's surface to achieve the desired profile.

■ Turning (Internal Rolling/Machining): This technique is more commonly applied for shaping hollowware items, such as cups or bottles. In this method, the clay is situated within a rotating mold. A rotating shaping tool (frequently a profiled knife or a specialized roller) then operates from the interior of the clay body, meticulously scraping and compacting it to create a precise internal contour.

■ For the complex, arcuate body of a Kamado grill, adapting these specific ceramic "roll forming" methods would necessitate highly sophisticated variations. For example, clay might be carefully positioned onto a custom-designed curved mold, and a specialized, precisely controlled rotating and compacting tool would gradually sculpt the distinctive egg-like form. However, considering the significant thickness and the high structural integrity requirements for Kamado grill bodies, direct press molding is generally considered a more robust, efficient, and effective primary forming method, sometimes complemented by the assembly of multiple molded sections.

3. Drying:

○ Following the forming stage, the moist clay "greenware" contains a substantial amount of water. It is imperative that these pieces are dried slowly and uniformly to prevent internal stresses, which could lead to cracking and warping. The drying process is meticulously controlled within environments where both temperature and humidity are precisely regulated, ensuring that moisture evaporates evenly throughout the entire ceramic body.

4. Bisque Firing:

○ Once adequately dried, the ceramic greenware is carefully loaded into a kiln for its initial firing, a process known as bisque firing. This typically occurs at temperatures ranging from approximately 900°C to 1000°C. The primary objectives of bisque firing are to harden the ceramic body, significantly increase its mechanical strength, and completely eliminate any residual moisture and organic compounds. This initial firing transforms the fragile greenware into a more durable "bisque" state, making it capable of withstanding subsequent handling, glazing, and higher-temperature glaze firing. Importantly, bisque-fired ceramic bodies retain a certain degree of porosity and absorbency, which is advantageous for the even application of glaze.

5. Glazing:

○ After bisque firing, the exterior surface of the Ceramic Grill body is treated with a ceramic glaze. This is commonly applied by spraying or carefully dipping the bisque-fired body into a prepared glaze slurry. The glaze serves a dual purpose: it provides the grill with its aesthetic appeal (e.g., a high-gloss finish, vibrant colors) and, more importantly, it forms a durable, impervious, glass-like protective layer during the subsequent firing. This protective layer significantly enhances the ceramic's resistance to stains, abrasion, chemical corrosion, and further improves its airtightness and overall thermal insulation properties.

6. Glaze Firing:

○ The glazed ceramic bodies are then meticulously loaded back into the kiln for their final, high-temperature firing, known as glaze firing. The temperatures for this stage are considerably higher than bisque firing, often reaching between 1200°C and 1300°C, or even beyond, depending on the specific composition of the ceramic body and the applied glaze. During glaze firing, the glaze material melts and fuses chemically with the ceramic body, creating a remarkably hard, smooth, and often glossy surface. This intense high-temperature firing also causes the ceramic body itself to fully vitrify, achieving its ultimate density, structural integrity, and desired performance characteristics.

7. Quality Control and Finishing:

○ Upon completion of the firing processes, the ceramic grill bodies undergo stringent quality control inspections. These comprehensive checks encompass precise dimensional accuracy, thorough visual inspection for any surface defects (e.g., cracks, blemishes, uneven glaze application), and often non-destructive tests to ensure thermal shock resistance and overall structural soundness. Any pieces failing to meet these rigorous standards are either rejected or, if possible, subjected to meticulous rework.

○ Finally, necessary finishing processes, such as precise edge grinding, the accurate drilling of specific holes for attachments, or other intricate detailing, are performed to meticulously prepare the ceramic components for the ultimate assembly stage.

The Role of Metal Components: Traditional Metalworking and True Roll Forming

In stark contrast to the ceramic body, the manufacturing of the Kamado grill's various metal components (e.g., the robust stand, precision hinges, and adjustable vents) frequently employs more conventional metalworking techniques. Within this context, roll forming is indeed a highly efficient continuous shaping method, particularly well-suited for producing long sections with consistent cross-sectional profiles.

1. Material Selection:

○ The choice of metal material is paramount and is dictated by the specific functional and durability requirements of each component. Common selections include stainless steel for its superior corrosion resistance and aesthetic appeal, cast iron for its substantial weight, excellent heat retention, and inherent durability in high-temperature applications, or aluminum for its lighter weight and effective thermal conductivity.

2. Cutting:

○ The initial stage involves precisely cutting the raw metal sheets or rods into the required shapes and dimensions. This can be achieved through various advanced techniques such as laser cutting (for high precision and intricate designs), plasma cutting (for thicker materials), traditional shearing (for straight cuts), or stamping (for rapid production of specific shapes).

3. Roll Forming:

○ Applicability: For certain elongated metal components within a Kamado grill, such as the structural beams of the grill stand, specific vent baffles, or other parts requiring uniform U-shaped, L-shaped, or more complex cross-sections, roll forming is an exceptionally efficient and cost-effective production method.

○ Process: In this highly automated and continuous manufacturing process, a flat metal coil (strip) is systematically fed through a series of precisely engineered forming rollers (often called "roll dies"). Each successive roller applies a specific amount of pressure and progressively alters the metal's shape. After passing through multiple such roll stations, the flat metal strip is gradually and accurately transformed into the desired complex cross-sectional profile. This process allows for rapid production rates and yields products with excellent dimensional accuracy and superior surface finish.

○ Advantages: Key benefits include significantly high production speed, reduced manufacturing costs (particularly for large volumes), exceptional product dimensional accuracy, a consistently high surface quality, and efficient material utilization with minimal waste.

○ Limitations: The initial investment in designing and manufacturing the specialized roll forming dies can be substantial, making it less economical for small production batches or for components with frequently changing or highly irregular shapes.

4. Stamping:

○ For metal components with non-uniform shapes, or those requiring features such as punched holes, embossed designs, or specific indentations (e.g., adjustable vent plates, hinge connecting brackets), stamping is a widely used and highly efficient method. This involves using a punch press and a custom die to quickly and efficiently form the metal sheet into the desired complex shape in a single operation.

5. Bending:

○ Metal components that need to be bent at precise angles, such as the legs of the grill stand or various handles, are typically formed using a bending machine (often a press brake). This process can involve either cold bending or, less commonly for these specific applications, hot bending.

6. Welding:

○ After cutting and forming, individual metal components are meticulously joined together to create complete structures. Welding techniques, such as TIG (Tungsten Inert Gas) welding or MIG (Metal Inert Gas) welding, are commonly employed to create strong and durable bonds, for instance, in assembling the robust framework of the grill stand.

7. Surface Finishing:

○ To enhance both the aesthetic appeal and the durability of the metal components, various surface finishing treatments are applied. These may include mechanical processes like grinding and polishing to remove burrs and achieve a smooth finish, or sandblasting for a textured appearance.

○ Depending on the specific metal material and its intended function, protective or decorative coatings may also be applied. Examples include powder coating for excellent chip resistance and aesthetic appeal, or electroplating for enhanced corrosion resistance and a desired metallic finish.

8. Assembly:

○ The final stage of manufacturing involves the meticulous assembly of all the individual components. The rigorously inspected ceramic grill body is carefully combined with the various metal parts, the high-temperature gasket, the integrated thermometer, and other accessories. This process typically includes securely attaching hinges, vents, and handles to the ceramic body, installing the cooking grates and ash pan, and ensuring that all components fit together precisely and function flawlessly.

○ The correct installation and sealing of the gasket are particularly critical, as they ensure the grill's airtight integrity, which is absolutely fundamental for achieving and maintaining precise temperature control during the cooking process.

In conclusion, while the term "roll forming" holds significant importance in the manufacturing lexicon, it's crucial to understand its specific application within the context of Kamado grill production. The iconic ceramic body of a Kamado grill is predominantly created through sophisticated press molding techniques and intricate high-temperature firing processes, which are singularly responsible for its exceptional heat retention and insulating properties. Although the broader concept of "roll forming" in ceramics might encompass methods like jiggering or turning—techniques that utilize rotating molds and tools to shape clay—these are mechanically and functionally distinct from the continuous bending of metal sheets. For the various auxiliary metal components of a Kamado grill, such as the robust stands and precision-engineered vents, conventional metal fabrication techniques, including indeed roll forming, are efficiently employed for precise and high-volume manufacturing. The overall creation of a Kamado grill stands as a testament to the seamless integration of diverse materials and complex manufacturing processes, with each step contributing significantly to the final product's superior performance, remarkable durability, and renowned capabilities in the culinary world.
